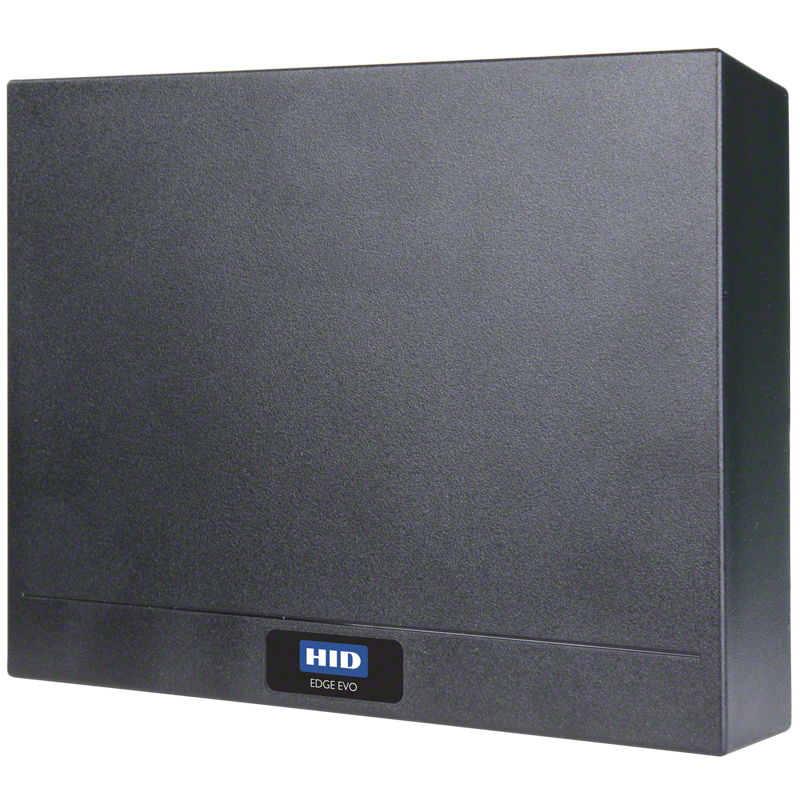

The EDGE EVO® EH400 is a single-door access control panel featuring Power over Ethernet (PoE). The EH400 makes local door decisions and can interface with one or two Hi-O iCLASS® readers. The panel is roughly the size of an R40 iCLASS reader and is mountable on EU 60mm and US single-gang electrical boxes.
•Includes an optical tamper and interfaces to Hi-O compliant devices, including Hi-O readers, Hi-O REX, Hi-O Strike and Hi-O Interface Modules.
•Provides access control processing, host interface and power for a single door, including a separate HI-O iCLASS reader, Hi-O lock and Hi-O request-to-exit device.
•Interoperable with non-Hi-O door components with separately purchased Hi-O Interface Module.
Enabling cost effective installation and high performance access control functionality, the solution provides a complete and fully functional hardware/firmware infrastructure for IP access control host systems.
Click here to view the Installation Guide
Click here to view the Edge EVO Password Reset and Network Default video
