Card Sets

<< Click to Display Table of Contents >>

Navigation:  Access Launchpad > Web Client > System >

Card Sets

Card Set:  The definition of a group of cards.  This definition contains the card format and facility code (if used).

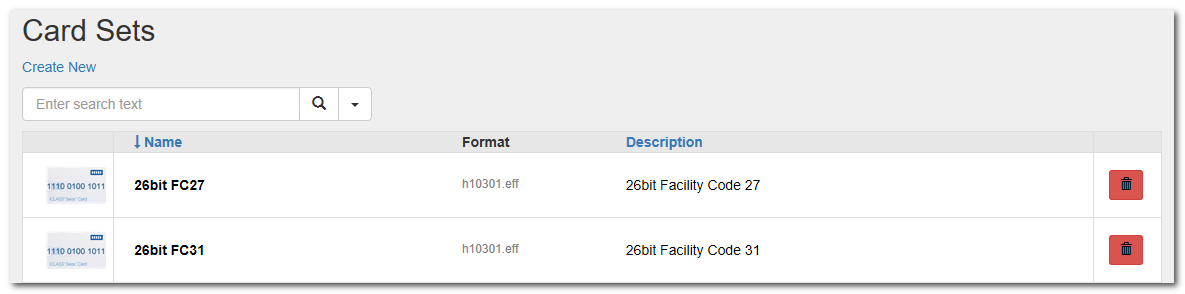

The Card Sets page will list all card sets in the partition.



card-sets

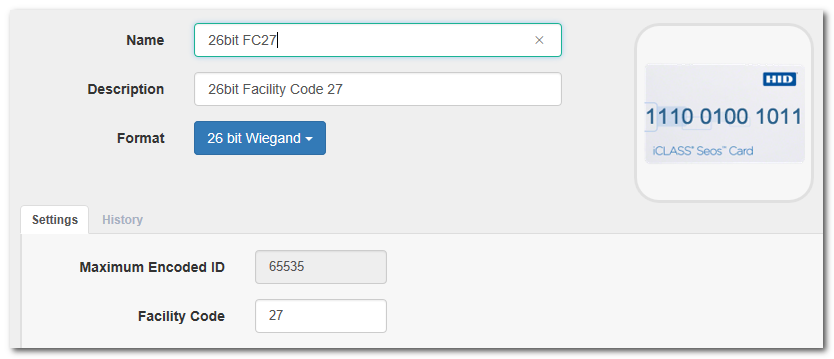

Click "Create New" to create a new card set or click the specific row of an existing card set to edit or view history.



card-set-edit



tech-tip

When creating a card set that uses one of the formats that comes with the application (26 bit Wiegand, 37 bit Wiegand or 37 bit Wiegand with Facility Code) the "Maximum Encoded ID field will be auto-populated and not configurable.  If the card set being created is using a different format, the field blank but required.



To figure out the maximum encoded ID of the format, use the following 2^X-1, where X is the number of encoded ID bits defined in the format.
